Original price was: ฿ 26,000.฿ 23,400Current price is: ฿ 23,400.

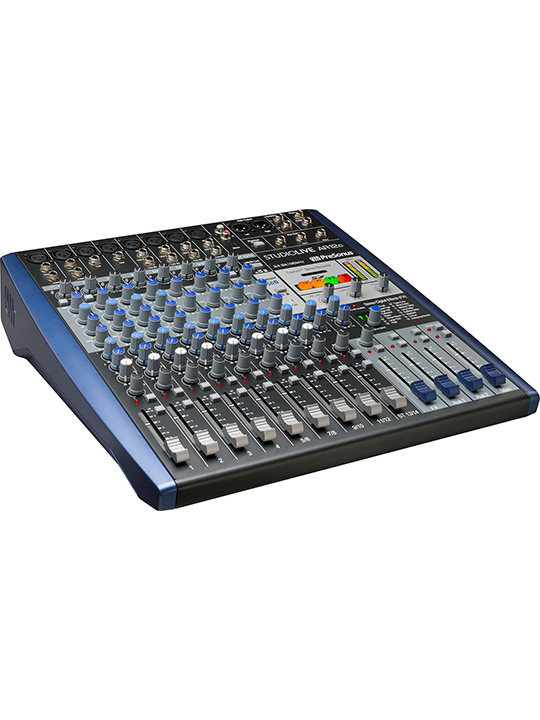

PreSonus StudioLive AR12c Analog Mixer
- StudioLive AR12c สร้างมาเพื่อการบันทึก นำเสนอส่วนหน้าแบบอะนาล็อกดั้งเดิมพร้อมปรีแอมป์ไมโครโฟน XMAX ประสิทธิภาพสูงแปดตัวและอินเทอร์เฟซเสียง USB 2.0 ที่รองรับ USB-C 14x4, 24 บิต, 96 kHz และด้วยการออกแบบไฮบริดของ StudioLive AR12c ทำให้ง่ายต่อการมิกซ์และบันทึก พร้อมเพิ่ม 3-band analog EQ, mic/line boost สำหรับ แหล่งเสียงระดับต่ำ รวมถึงซินธ์วินเทจ, เอฟเฟกต์ดิจิทัลใหม่ทั้งหมดพร้อมรีเวิร์บที่เข้มข้นและดีเลย์อันนุ่มนวล, การเชื่อมต่อ Bluetooth และเครื่องบันทึก SD สเตอริโอ นี่คือขุมพลังในการมิกซ์และบันทึกเสียงที่ตอบสนองความต้องการของนักดนตรีสมัยใหม่และผู้สร้างเนื้อหา
PreSonus StudioLive AR12c Analog Mixer
- Don’t let the classic analog mixer design fool you—the StudioLive® AR12c was built to record. Featuring a pristine analog front end with eight high-gain XMAX mic preamps and an 14x4, 24-bit, 96 kHz, USB-C™-compatible USB 2.0 audio interface, the StudioLive AR12c’s hybrid design makes it simple to mix and record. Add in a musical 3-band analog EQ, mic/line boost for low-level sources including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.
** กด"สั่งซื้อ/สอบถามข้อมูล" เพื่อติดต่อผ่าน Line @
กรุณาแจ้งรุ่นและสี ที่ต้องการครับ
Additional information
| Brands | PreSonus |
|---|---|
| Categories | Mixer |
Features
- 14×4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
- 2×2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
- 14-channel analog mixer with:
- 8 balanced microphone inputs with XMAX mic preamps plus two instrument inputs, 12 balanced line level inputs, and 2 insert points
- Stereo Super Channel (Ch. 13/14) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- Complete recording solution: Includes Capture™ live-recording software and Studio One® Artist DAW for Mac® and Windows
The Channel That Does It All
The unique Super Channel makes it easy to connect up to four consumer devices at once. You get RCA inputs, a ⅛-inch stereo input, and a stereo Bluetooth input all at once. Toggle between playback from your computer and the onboard SD recorder to add bumpers and sound effects to your podcast in real time or practice along with your favorite recordings.
Onboard Effects.
The StudioLive AR12c mixer’s onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones? Record the main mix and capture the effects mix, too—with or without the dry channels—to blend with your multitrack recording. Experiment in post-production to your heart’s content.
One-Click Recording
The StudioLive AR12c is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!
World-Class Recording Software Included
Take your Capture recordings to the next level with Studio One Artist. Open your multitrack sessions natively in Studio One to start mixing! Studio One’s intuitive drag-and-drop workflow makes recording, mixing, and producing fast and fun.
Microphone Preamp
-
Total Harmonic Distortion : <0.01% (Minimum Gain, A-Weighted)
-
Signal To Noise Ratio : 94 dB (+4 dBu)
-
Common Mode Rejection Ratio : 65 dB (1 kHz, +55 dB Gain)
-
Gain Control Range : 43 dB (+12 to +55 dB)
-
Maximum Input Level : +9 dBu ± 1.0 dB (Unity Gain)
-
Phantom Power : + 48V, ± 3V, Global
-
Frequency Response : 20 Hz to 20 kHz, +0.5/-1.5 dB
-
Input Impedance : 1 kΩ
-
Equivalent Input Noise : <128 dBu
Line Inputs
-
Maximum Level : +26 dBu ±1.0 dB (Minimum Gain, 1 [email protected]% THD + N)
-
Line Inputs Gain Range : Mono: 40 dB, ± 1 dB, Stereo: 0 dB or +10 dB
-
Line Inputs Frequency Response : 20 Hz to 20 kHz, +0.5/-1.5 dB
-
Line Inputs Total Harmonic Distortion : <0.01% (1 kHz, -1 dBFS, A-Weighted)
-
Line Inputs Impedance : 10 kΩ (Balanced)
Main And Line Outputs
-
Main And Line Outputs Frequency Response : 20 Hz to 20 kHz, +0.5/-1.5 dB
-
Main And Line Outputs Total Harmonic Distortion : <0.01% (Bandwidth 20 Hz – 20 kHz, -1 dBFS, Unweighted)
-
Main And Line Outputs Dynamic Range : >108 dB (A-wtd)
Headphone Outputs
-
Maximum Output : 150 mW /Channel at 60 Ω
-
Frequency Response : 20 Hz to 20 kHz, +0.5/-1.5 dB
-
Dynamic Range : >103 dB (A-Weighted)
-
Total Harmonic Distortion : <0.01% (Bandwidth 20 Hz – 20 kHz, -1 dBFS, Unweighted)
Digital Audio
-
Dynamic Range : 105 dB (A-Weighted, 48 kHz)
-
Bit Depth : 24
-
Supported Sample Rates : 44.1, 48, 88.2, 96 kHz
