PreSonus Studio 1824c
- PreSonus เป็นผู้บุกเบิกอินเทอร์เฟซเสียงแบบ high-channel-count audio interfaces และใช้เวลา 20 ปีที่ผ่านมาในการสร้างอินเทอร์เฟซเสียงที่ดีที่สุดสำหรับการบันทึกเซสชันขนาดใหญ่ จากมรดกนี้ Studio 1824c มอบคุณภาพเสียงที่น่าทึ่งด้วยปรีแอมป์ไมโครโฟนอะนาล็อก XMAX ที่ได้รับการยกย่องของ PreSonus จำนวน 8 ตัวในตัว และการแปลง 24 บิต 192 kHz เพิ่มปรีแอมป์ low-noise instrument preamps 2 ตัว , balanced line-level inputs และอินพุต ADAT เพื่อเพิ่มช่องสัญญาณอีก 8 ช่องทุกครั้งที่คุณต้องการ ซึ่งทำให้คุณมีอินเทอร์เฟซเสียงที่พร้อมที่จะบันทึกทุกเซสชัน ตัวแปลงคุณภาพสูงและปรีแอมป์ไมโครโฟน XMAX ระดับมืออาชีพของ PreSonus จับฮาร์โมนิกดนตรีที่ซับซ้อนได้อย่างราบรื่นและเป็นธรรมชาติ โดยไม่มีการบิดเบือนของเสียง ปรีแอมป์ไมโครโฟน XMAX ให้เสียงช่วงบนที่สูงอย่างไม่น่าเชื่อ เสียงต่ำที่ลึก เสียงสูงที่นุ่มนวล และเสียงโดยรวมที่เข้มข้น ดังนั้นคุณจะได้ยินแทบทุกรายละเอียดในการบันทึกของคุณ มิกเซอร์ DSP ที่ยืดหยุ่น ปุ่มควบคุมการปิดเสียง โมโน และระดับเสียงที่แผงด้านหน้าช่วยให้คุณทำงานกับมิกซ์หลักของคุณได้ ไม่ว่าคุณจะอัพเกรดสตูดิโอของคุณหรือสร้างพื้นที่ใหม่สำหรับวงดนตรีของคุณในการบันทึกเสียง Studio 1824c สามารถรองรับปรีแอมป์ไมโครโฟนที่เหนือกว่า อินพุตที่ขยายได้ และการมิกซ์มอนิเตอร์ออนบอร์ดที่ทรงพลังและใช้งานง่ายเพื่อให้คุณมีเสียงระดับโลก และผลลัพธ์ที่คุณต้องการ

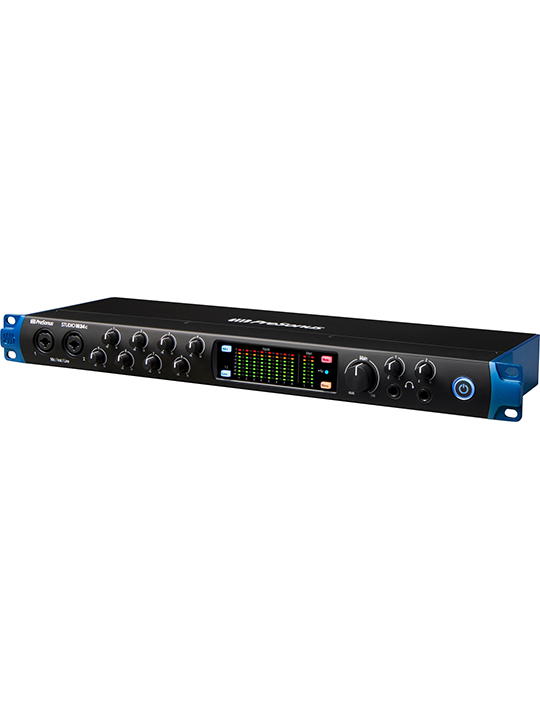

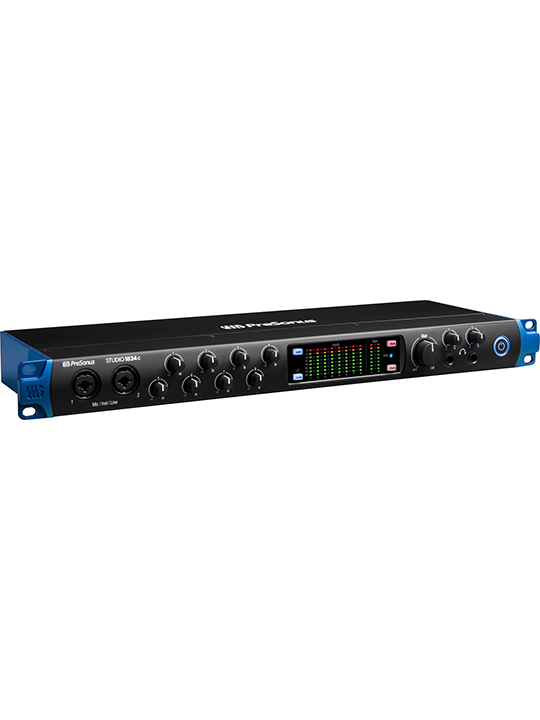

PreSonus Studio 1824c
- PreSonus® was a pioneer in high-channel-count audio interfaces and has spent the last 20 years creating the best audio interfaces for recording large sessions. Building on this legacy, the Studio 1824c provides amazing sound-quality with eight of PreSonus’ lauded XMAX analog mic preamps onboard and pristine 24-bit 192 kHz conversion. Add two low-noise instrument preamps, balanced line-level inputs, and an ADAT input to add 8 more channels whenever you need them, and you have an audio interface ready to record just about any session.
- When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus’ professional-grade XMAX mic preamps capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound, so you’ll hear every breath, transient, and detail in your recordings. Professional input and output metering let you keep an eye on your levels. A flexible DSP mixer lets you create four discrete near-zero-latency monitor mixes. Front-panel Mute, Mono, and level controls let you work with your main mix.
- Whether you're upgrading your studio or building a new space for your band to record, the Studio 1824c has you covered with superior mic preamps, expandable inputs, and powerful, easy-to-use onboard monitor mixing to give you the world-class results you want.
** กด"สั่งซื้อ/สอบถามข้อมูล" เพื่อติดต่อผ่าน Line @
กรุณาแจ้งรุ่นและสี ที่ต้องการครับ
Additional information
Brands | PreSonus |
---|---|
Categories | Audio Interface |
SKU: P277-7706-402 - Need Help? Contact Us Leave Feedback
Categories: Keyboard&Recording, PreSonus, PreSonus, Studio Instruments
Contact Us
Leave Feedback
Features
- Up to 18 inputs/20 outputs simultaneously (8×8 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 6 mic/line inputs with XMAX Class A mic preamps
- 8 channels of ADAT Optical I/O (4 channels at 96 kHz)

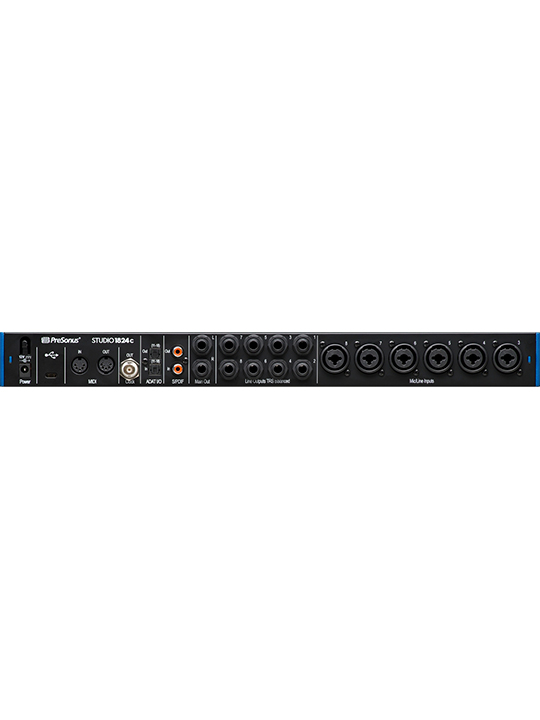

- 2 balanced ¼-inch TRS main outputs and 8 balanced ¼-inch TRS line outputs for monitor mixing, all DC coupled for sending control voltages
- 2 stereo headphone outputs with individual level controls
- Stereo S/PDIF digital I/O and MIDI In/Out
- 18×8 onboard DSP monitor mixer
- Front-panel level controls plus Mono and Mute buttons for the main outputs
- True +48V phantom power for condenser microphones (global)
- 10 ladder-style 8-LED level meters (8 input, 2 main output)
- 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers

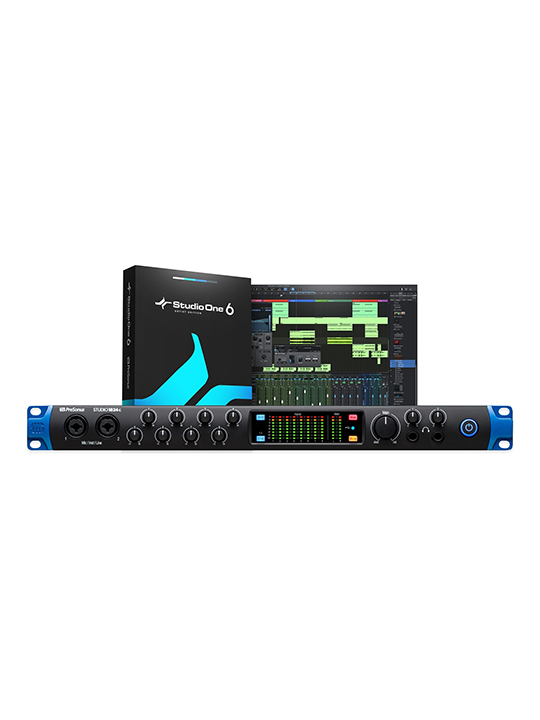

- Includes Studio One Artist®, Studio Magic Software Suite, and Ableton® Live Lite
World-Class Recording Software Included.
The Studio 1824c works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus®’ Studio One® Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record, and produce without getting distracted by the tools.

Make Your Own Magic.
Expand your Studio One® experience with the Studio Magic Suite of software. Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU and AAX formats to use in Studio One Artist or your DAW of choice, with a retail value of over $1,000 (US).

Electronics
-
Voltage : 120V
-
Inputs : Eight – Eight Combo Mic/Instrument/Line Inputs (XLR Female Balance, 1/4″ TS Female Unbalanced (Inst))
-
Headphone Jack : 1/8″ TRS Active Stereo
-
Line Out : Four – 1/4″ TRS Balanced, DC Coupled
Miscellaneous
-
Connection Type : 12 VDC, External Power Supply
-
MIDI I/O : Dual 5-Pin Female DIN
Microphone Preamp
-
Total Harmonic Distortion : 0.005% (1 kHz, 0dBu, Unity Gain)
-
Gain Control Range : 80 dB
-
Maximum Input Level : +16 dBu, Minimum Gain
-
Phantom Power : 48V (>10 mA per Channel)
-
Frequency Response : 20 Hz – 20 kHz (Unity Gain)
-
Input Impedance : 1.4 kΩ
-
Dynamic Range : 110 dB (A-Weighted, Minimum Gain)
-
Equivalent Input Noise : -128 dBu (A-Weighted, 20 kHz BW, Rs=150Ω, Maximum Gain)
Line Inputs
-
Maximum Level : +21 dBu (Balanced, Minimum Gain)
-
Line Inputs Gain Range : 40 dB
-
Line Inputs Frequency Response : 20 Hz – 20 kHz (Unity Gain)
-
Line Inputs Dynamic Range : 112 dB (A-Weighted, Minimum Gain)
-
Line Inputs Total Harmonic Distortion : 0.005% (1 kHz, +18 dBu, Minimum Gain)
-
Line Inputs Impedance : 10 kΩ
Main And Line Outputs
-
Main And Line Outputs Maximum Level : +18 dBu (Balanced)
-
Main And Line Outputs Frequency Response : 20 Hz – 20 kHz (Unity Gain)
-
Main And Line Outputs Total Harmonic Distortion : 0.004% (1 kHz, -1 dBFS, Unity Gain)
-
Main And Line Outputs Dynamic Range : 108 dB (A-Weighted, Unity Gain)
Headphone Outputs
-
Maximum Output : 150 mW/Channel (60Ω Load)
-
Frequency Response : 20 Hz – 20 kHz (Unity Gain)
-
Dynamic Range : 103 dB (A-weighted, 1 kHz, Unity Gain)
-
Total Harmonic Distortion : 0.250% (1 kHz, 150 mW, Unity Gain)
-
Impedance Working Range : 32Ω to 600Ω
Digital Audio
-
Dynamic Range : 114 dB
-
Bit Depth : 24 Bit
-
Supported Sample Rates : 44.1, 48, 88.2, 96, 176.4, 192 kHz (kHz)
